Folks,
I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but... I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.
Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?
This seems acceptable to me. What do you think?
    -- Art Z.
--
https://CheerfulCurmudgeon.com/"If I am not for myself, who is for me? And if I am only for myself, what am I? And if not now, when?" Hillel


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
alec(at)alecmyers.com
Guest





PostPosted: Sat Apr 28, 2018 6:48 am    Post subject: PVC vs Nylon Connectors Reply with quote

My Cessna has lots of (as far as I know) original PVC insulated crimps.

On Apr 28, 2018, at 10:36, Art Zemon <art(at)zemon.name (art(at)zemon.name)> wrote:
Quote:
Folks,
I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but... I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.
Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?
This seems acceptable to me. What do you think?
-- Art Z.
--
https://CheerfulCurmudgeon.com/"If I am not for myself, who is for me? And if I am only for myself, what am I? And if not now, when?" Hillel






- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
cluros(at)gmail.com
Guest





PostPosted: Sat Apr 28, 2018 7:04 am    Post subject: PVC vs Nylon Connectors Reply with quote

Good timing Art!

In this week's Hint for Homebuilders on the EAA newsletter, Dick Koehler specifically mentions that while the nylon ones are better, the FAA says both are acceptable.
http://www.eaavideo.org/detail/video/5776799595001/?mkt_tok=eyJpIjoiWWpobE9UQTJObVk1TTJabSIsInQiOiJpeGVMOU9DWWg1Vks0Z0QwbFlLQjdvcjZiSCtEVkJpdW1Fd2psYU9hL1Z4dVREUTJYa3FmUEdBMjVoRWNzWnBkZ2JNQTBPYVVQYXVwVjZsOGZ3UjhKcWl3UGJaNWJ3ZXEvc3FnVnA2N0V1Y21NL2tjV21kUTV6bURmVWorZ0pUdCJ9

My aircraft is completely full of PVC connectors. I replace them with nylon whenever I install or repair anything but 30 years later the PVC ones are still problem free.
On Sat, Apr 28, 2018 at 7:36 AM, Art Zemon <art(at)zemon.name (art(at)zemon.name)> wrote:
Quote:
Folks,
I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but... I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.
Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?
This seems acceptable to me. What do you think?
    -- Art Z.
--
https://CheerfulCurmudgeon.com/"If I am not for myself, who is for me? And if I am only for myself, what am I? And if not now, when?" Hillel





- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
bob.verwey(at)gmail.com
Guest





PostPosted: Sat Apr 28, 2018 7:27 am    Post subject: PVC vs Nylon Connectors Reply with quote

My understanding is that the nylon is good in the engine compartment...the PVC not so much

On Sat, 28 Apr 2018, 4:52 PM Alec Myers <alec(at)alecmyers.com (alec(at)alecmyers.com)> wrote:

Quote:

My Cessna has lots of (as far as I know) original PVC insulated crimps.

On Apr 28, 2018, at 10:36, Art Zemon <art(at)zemon.name (art(at)zemon.name)> wrote:
Quote:
Folks,
I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but.. I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.
Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?
This seems acceptable to me. What do you think?
    -- Art Z.
--
https://CheerfulCurmudgeon.com/"If I am not for myself, who is for me? And if I am only for myself, what am I? And if not now, when?" Hillel







- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
ron228rj(at)gmail.com
Guest





PostPosted: Sat Apr 28, 2018 8:02 am    Post subject: PVC vs Nylon Connectors Reply with quote

My Home Depot actually has some Tyco Electronics nylon connectors, which I have used on my plane. But, I am not sure if they have them for butt connectors. They definitely have nylon disconnects.
Ron

On Sat, Apr 28, 2018, 10:42 AM Art Zemon <art(at)zemon.name (art(at)zemon.name)> wrote:

Quote:
Folks,
I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but... I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.
Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?
This seems acceptable to me. What do you think?
    -- Art Z.
--
https://CheerfulCurmudgeon.com/"If I am not for myself, who is for me? And if I am only for myself, what am I? And if not now, when?" Hillel





- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
nuckolls.bob(at)aeroelect
Guest





PostPosted: Sat Apr 28, 2018 8:44 am    Post subject: PVC vs Nylon Connectors Reply with quote

Quote:


On Sat, Apr 28, 2018 at 7:36 AM, Art Zemon <art(at)zemon.name (art(at)zemon.name)> wrote:
Folks,

I am out of nylon butt connectors. I know that I am not supposed to use PVC connectors in an airplane but... I need connectors for the landing light wires, out in the wings. I can grab a few PVC butt connectors in the aviation aisle of Home Depot.

Help me figure this out, please. There are a whole lot of PVC connectors in cars. Lifetime on the order of 10-20 years, maybe more. Shouldn't I see similar lifetime inside a wing? Probably more since it will be exposed to cold but not as much heat (as a car regularly cooking in the sun in a parking lot)?

This seems acceptable to me. What do you think?


I would invite the readers to review this article I
posted a few years back that reviews the legacy
design goals and properties of materials for what
was then, a "mil spec'd" style of solderless wire
termination:

https://goo.gl/Fq95MU

Major features in the PIDG style connectors are
the terminal body (part that grips strands of wire),
insulator (provides some protection of the assembly
and helps identify the terminal by its color) and
a thin, metallic sleeve inside the insulator that
is formed down against the termnial barrel -AND-
insulation of the mated wire to provide insulation
support for resistance to breakage under vibration.

Here's the TE_Connectivity/AMP drawing for a PIDG

https://goo.gl/66QGz4

here's the same size terminal in Plasti-Grip

https://goo.gl/ZQaKRV

Without insulation support, the strands are at-risk
for vibration fatigue and separation. Here'a
an interesting work-around.

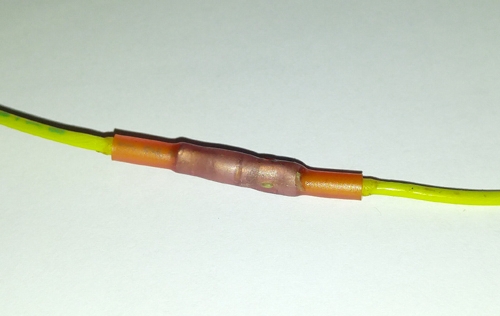

[img]cid:.0[/img]

This Electronic Ignition, dual feed, diode isolated
distribution bus has multiple connections just waiting
to fail.


[img]cid:.1[/img]

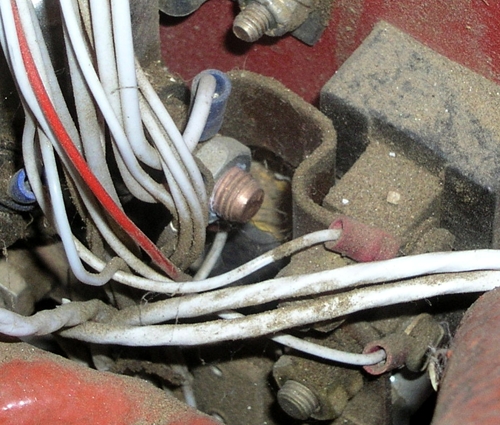

This view shows four, plasti-grip terminals
that were either (1) improperly applied or
(2) had already regained their as-manufactured
shape due to temperature cycling. This was
a 'hands off' inspection of the wreckage
so I was unable examine more closely.

[img]cid:.2[/img]


Here's an example of lapses in craftsmanship for a breaker/bus-bar
assembly salvaged from a vintage Piper. We cannot know the time-in-
service for the variety of terminations seen here, but the PIDG
terminals demonstrate a decided advantage over the Plasti-Grip.

[img]cid:.3[/img][/b]

At 09:54 AM 4/28/2018, you wrote:
Good timing Art!

In this week's Hint for Homebuilders on the EAA newsletter, Dick Koehler specifically mentions that while the nylon ones are better, the FAA says both are acceptable.

http://www.eaavideo.org/detail/video/5776799595001/?mkt_tok=eyJpIjoiWWpobE9UQTJObVk1TTJabSIsInQiOiJpeGVMOU9DWWg1Vks0Z0QwbFlLQjdvcjZiSCtEVkJpdW1Fd2psYU9hL1Z4dVREUTJYa3FmUEdBMjVoRWNzWnBkZ2JNQTBPYVVQYXVwVjZsOGZ3UjhKcWl3UGJaNWJ3ZXEvc3FnVnA2N0V1Y21NL2tjV21kUTV6bURmVWorZ0pUdCJ9

My aircraft is completely full of PVC connectors. I replace them with nylon whenever I install or repair anything but 30 years later the PVC ones are still problem free.

I was unable to get the video to load. I would really
like to see the document on FAA paper that suggests
interchangeability for the PIDG vs Plasti-Grip.
I would be surprised that any movement across technologies
recommended/mandated by the FAA would translate 'downward'.

Butt splices in runs of wire tied to wire bundles can
be spliced with much less expense (and physical bulk
to the bundle) with this technique:

https://goo.gl/FMCY9K

Having offered all the above, I will close with the
notion that a Plasti-Grip splice tied into a wire
bundle is at VERY LOW RISK for lost of conductors
due to vibration because of the support offered by
OTHER wires in the bundle. But be wary of non-PIDG
terminations for wires taken to studs and tabe.

[/b]
Bob . . .
