Flap Switch


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> AeroElectric-List
View previous topic :: View next topic
Author Message
Pat Hatch



Joined: 10 Jan 2006
Posts: 4
Location: Vero Beach, FL

PostPosted: Tue Mar 27, 2018 1:35 pm    Post subject: Flap Switch Reply with quote

Bob, perhaps you can help me find a SPDT (1-5) switch for flap control where the bat doesn't rotate. Years ago you published a piece on how to make a little flap lever out of a solid piece of aluminum that goes over the toggle and gets held there by a couple of set screws. The only ones I have found all have bats or toggles that rotate and this is not good. Do you recall which switch it was? Thanks!

- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
RV-6
RV-7
Flying
Back to top
View user's profile Send private message Send e-mail Visit poster's website
Flyitnow



Joined: 05 Aug 2016
Posts: 3

PostPosted: Tue Mar 27, 2018 2:16 pm    Post subject: Flap Switch Reply with quote

Aircraft Spruce # 11-11337
Sent from the Yahoo Mail app. Get yours!

Quote:
On Tue, Mar 27, 2018 at 2:51 PM, Pat Hatch
<pat_hatch(at)msn.com> wrote:

--> AeroElectric-List message posted by: "Pat Hatch" <pat_hatch(at)msn.com (pat_hatch(at)msn.com)>

Bob, perhaps you can help me find a SPDT (1-5) switch for flap control where the bat doesn't rotate. Years ago you published a piece on how to make a little flap lever out of a solid piece of aluminum that goes over the toggle and gets held there by a couple of set screws. The only ones I have found all have bats or toggles that rotate and this is not good. Do you recall which switch it was? Thanks!

--------

RV-6

RV-7

Flying

Read this topic online here:

http://forums.matronics.com/viewtopic.php?p=478894#478894



http://www.matronics.com/Navigator?AeroElectric-L; - MATRONICS WEB FORUMS -

http://forums.matronbsp; - NEW MATRONICS LIST WIKI -

http://wiki.matronics.com

_-========================sp; - List Contribution Web Site -

http://www.matronics.com/contributi======================




- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
View user's profile Send private message
JOHN TIPTON



Joined: 17 Sep 2006
Posts: 239
Location: Torquay - England

PostPosted: Tue Mar 27, 2018 3:01 pm    Post subject: Re: Flap Switch Reply with quote

Surely this will answer your requirements:

http://www.aircraftspecialty.com/rvall1.html

John


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
View user's profile Send private message
Pat Hatch



Joined: 10 Jan 2006
Posts: 4
Location: Vero Beach, FL

PostPosted: Tue Mar 27, 2018 3:54 pm    Post subject: Re: Flap Switch Reply with quote

Thanks, guys. Actually, I have the flap handle (toggle). I need the switch, one that has a bat that doesn't rotate. All the ones I've tried have a toggle that rotates in the switch such that the flap handle will not stay horizontal.

- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
RV-6
RV-7
Flying
Back to top
View user's profile Send private message Send e-mail Visit poster's website
nuckolls.bob(at)aeroelect
Guest





PostPosted: Wed Mar 28, 2018 4:49 am    Post subject: Flap Switch Reply with quote

At 05:13 PM 3/27/2018, you wrote:
Quote:
Aircraft Spruce # 11-11337

Sent from the Yahoo Mail app. Get yours!

On Tue, Mar 27, 2018 at 2:51 PM, Pat Hatch
<pat_hatch(at)msn.com> wrote:
--> AeroElectric-List message posted by: "Pat Hatch" <pat_hatch(at)msn.com (pat_hatch(at)msn.com)>

Bob, perhaps you can help me find a SPDT (1-5) switch for flap control where the bat doesn't rotate. Years ago you published a piece on how to make a little flap lever out of a solid piece of aluminum that goes over the toggle and gets held there by a couple of set screws. The only ones I have found all have bats or toggles that rotate and this is not good. Do you recall which switch it was? Thanks!

Yes . . .

You need a switch that with a restrained
handle such as the Honeywell 2TL1-5.

The Dash 5 is a 3 position that is stable
in two extremes and spring loaded out of the
third? Is this the action your seeking?

Shop around a bit . . . they come in all
$sizes$ . . .

https://goo.gl/FQfTRF

https://goo.gl/va48he



Bob . . .


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
nuckolls.bob(at)aeroelect
Guest





PostPosted: Wed Mar 28, 2018 4:56 am    Post subject: Flap Switch Reply with quote

At 05:13 PM 3/27/2018, you wrote:
Quote:
Aircraft Spruce # 11-11337

Sent from the Yahoo Mail app. Get yours!

On Tue, Mar 27, 2018 at 2:51 PM, Pat Hatch <pat_hatch(at)msn.com> wrote: --> AeroElectric-List message posted by: "Pat Hatch" <pat_hatch(at)msn.com (pat_hatch(at)msn.com)>
Bob, perhaps you can help me find a SPDT (1-5) switch for flap control where the bat doesn't rotate. Years ago you published a piece on how to make a little flap lever out of a solid piece of aluminum that goes over the toggle and gets held there by a couple of set screws. The only ones I have found all have bats or toggles that rotate and this is not good. Do you recall which switch it was? Thanks!

Yes . . .

You need a switch that with a restrained
handle such as the Honeywell 2TL1-5.

The Dash 5 is a 3 position that is stable
in two extremes and spring loaded out of the
third? Is this the action your seeking?

Shop around a bit . . . they come in all
$sizes$ . . .

https://goo.gl/FQfTRF

https://goo.gl/va48he

[img]cid:7.1.0.9.0.20180328075345.05fffc70(at)aeroelectric.com.0[/img]

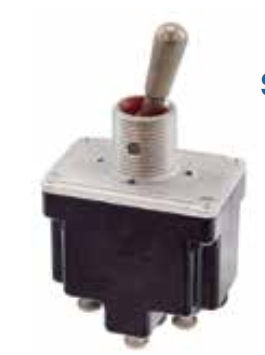

Found a picture of this switch with the nuts
removed. You can see the end of the handle
shaft. Anyone who supplies this kind of switch
as a MilSpec device will probably have the same
feature.




Bob . . .


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List



 Description:
 Filesize:  25.29 KB
 Viewed:  501 Time(s)



Back to top
BARRY CHECK 6



Joined: 15 Mar 2011
Posts: 675

PostPosted: Wed Mar 28, 2018 5:06 am    Post subject: Flap Switch Reply with quote

Pat:
If you LQQK into the switch where the 'bat' enters AND you see a rubber shield.  Those switches have a dust/moisture barrier and they do not rotate.
You can make the lever out of aluminum, hardwood or even use a 3D printer.
If you use set-screws do a little grinding on the bat to make a flat for the set-screw to bite into.
Barry
On Wed, Mar 28, 2018 at 8:48 AM, Robert L. Nuckolls, III <nuckolls.bob(at)aeroelectric.com (nuckolls.bob(at)aeroelectric.com)> wrote:
Quote:
At 05:13 PM 3/27/2018, you wrote:
Quote:
Aircraft Spruce # 11-11337

Sent from the Yahoo Mail app. Get yours!

On Tue, Mar 27, 2018 at 2:51 PM, Pat Hatch
<pat_hatch(at)msn.com (pat_hatch(at)msn.com)> wrote:
--> AeroElectric-List message posted by: "Pat Hatch" <pat_hatch(at)msn.com (pat_hatch(at)msn.com)>

Bob, perhaps you can help me find a SPDT (1-5) switch  for flap control where the bat doesn't rotate.  Years ago you published a piece on how to make a little flap lever out of a solid piece of aluminum that goes over the toggle and gets held there by a couple of set screws.  The only ones I have found all have bats or toggles that rotate and this is not good.  Do you recall which switch it was?  Thanks!
  Yes . . .

  You need a switch that with a restrained
  handle such as the Honeywell 2TL1-5.

  The Dash 5 is a 3 position that is stable
  in two extremes and spring loaded out of the
  third? Is this the action your seeking?

  Shop around a bit . . . they come in all
  $sizes$ . . .

https://goo.gl/FQfTRF

https://goo.gl/va48he



  Bob . . .


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List
Back to top
View user's profile Send private message Send e-mail
Pat Hatch



Joined: 10 Jan 2006
Posts: 4
Location: Vero Beach, FL

PostPosted: Tue Apr 03, 2018 2:28 am    Post subject: Re: Flap Switch Reply with quote

  Yes . . .

  You need a switch that with a restrained
  handle such as the Honeywell 2TL1-5.

  The Dash 5 is a 3 position that is stable
  in two extremes and spring loaded out of the
  third? Is this the action your seeking?

  Shop around a bit . . . they come in all
  $sizes$ . . .

[url=https://goo.gl/FQfTRF]https://goo.gl/FQfTRF[/url]

https://goo.gl/va48he


[u][/u]
[u][/u]   Bob . . .
[/quote][/quote]

Thanks, Bob, that's exactly what I was looking for! Very Happy


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

_________________
RV-6
RV-7
Flying
Back to top
View user's profile Send private message Send e-mail Visit poster's website
