Lightweight rechargeable battery backup unit


Post new topic   Reply to topic    Matronics Email Lists Forum Index -> AeroElectric-List
View previous topic :: View next topic
Author Message
nuckolls.bob(at)aeroelect
Guest





PostPosted: Mon Mar 27, 2017 2:32 pm    Post subject: Lightweight rechargeable battery backup unit Reply with quote

At 11:16 AM 3/27/2017, you wrote:
Quote:
Bob,

Hesitate to display my ignorance but with the schematic you drew won't the ASX-1 draw power from the higher voltage source, the batteries, until they are depleted to below the E-bus voltage? Won't replacing the diodes and SPST switch with a SPDT (even an on - off - on) with the center contact going to the ASX-1 solve the issue and provide the same functionality?

Tom Kuffel

Nothing ignorant about your observation my friend . . . good
eye! Your suggestion eliminates the conflict you noted.

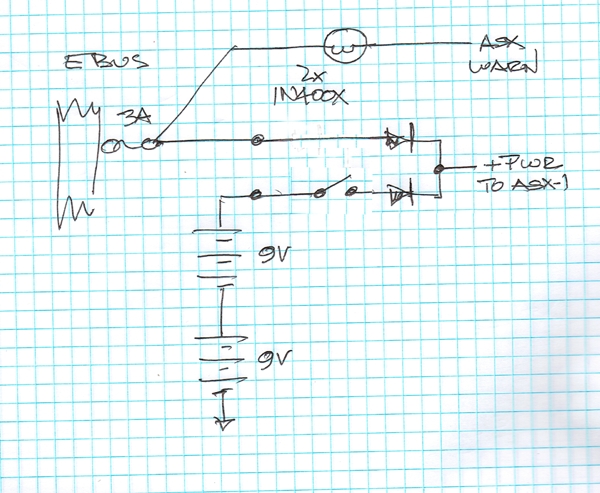

Here's another alternative. The diodes prevent back-feeding
of either source to the opposite source. The switch
isolates the standby batteries.

Preflight would be modified to close the sb battery
switch first to see that the ASX-1 lights up. Then
turn it back off for remainder of that flight op.

Thanks for the catch!


[img]cid:7.1.0.9.0.20170327161256.0099e920(at)aeroelectric.com.0[/img]



Bob . . .


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List



 Description:
 Filesize:  242.71 KB
 Viewed:  1234 Time(s)



Back to top
BobD



Joined: 05 Jan 2016
Posts: 65
Location: Sheffield UK

PostPosted: Tue Jul 04, 2017 3:46 am    Post subject: Re: Lightweight rechargeable battery backup unit Reply with quote

Just as a follow up to the various posts on this and similar threads, here is the schematic of the final wiring diagram I settled on.
The switch used incorporates a warning light when the Battery Backup is activated. There are probably cheaper ones than that quoted (but I had a few spares from my old panel, so no cost to me). The Battery Holder is cheap, and fitted into a blank on my panel I had made for a potential Dynon AP at a later date.
Obviously, it does not provide a rechargeable option, but I took on board Bob's calculations that if not used in anger, the batteries should be good for 12 months, so test as part of pre-flight checklist, and replace batteries at Annual.
It is offered here with absolutely no warranty whatsoever, i.e. use at your own risk.
I have yet to have the unit approved by the UK LAA.
Thanks to all those who contributed to the thread.


- The Matronics AeroElectric-List Email Forum -


Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List



bbu.pdf
 Description:

Download
 Filename:  bbu.pdf
 Filesize:  28.42 KB
 Downloaded:  148 Time(s)


_________________
Bob Dawson
Europa XS TG || 912 ULS || G-NHRJ || Dynon Skyview || PilotAware || SmartAss3
